SUPO rubber profiles
Unit = mm / Hardness = ASKER C/SRIS 0101
SUPO profiles
Features
- SUPO is the original profiles, which are manufactured at DAISO JAPAN factory.
- SUPO can enhance nicks and support high-speed diecut production.
- SUPO can eliminate sheet delamination and cracks.
- SUPO is anti-static material and good for PP and PET diecutting.
- SUPO is made of green material and no toxic gas when it is burnt.

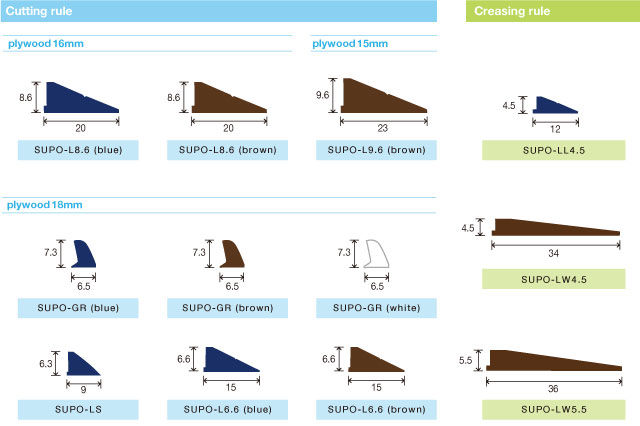

Specification
| Name | Size(Height x width x length) | Hardness |
|---|---|---|
| SUPO-L8.6 (blue) | 8.6 x 20 x 700 | 70° |
| SUPO-L8.6 (brown) | 8.6 x 20 x 700 | 80° |
| SUPO-GR (blue) | 7.3 x 6.5 x 700 | 70° |
| SUPO-GR (brown) | 7.3 x 6.5 x 700 | 80° |
| SUPO-LS | 6.3 x 9 x 700 | 70° |
| SUPO-L6.6 (blue) | 6.6 x 15 x 700 | 70° |
| SUPO-L6.6 (brown) | 6.6 x 15 x 700 | 80° |
| SUPO-LL4.5 | 4.5 x 12 x 700 | 70° |
| SUPO-LW3.5 | 3.5 x 38 x 700 | 70° |
| SUPO-LW4.5 | 4.5 x 34 x 700 | 80° |
| SUPO-LW5.5 | 5.5 x 36 x 700 | 80° |
※Cyanon glue is recommended to fix SUPO.
