eSponge ejection
eSponge

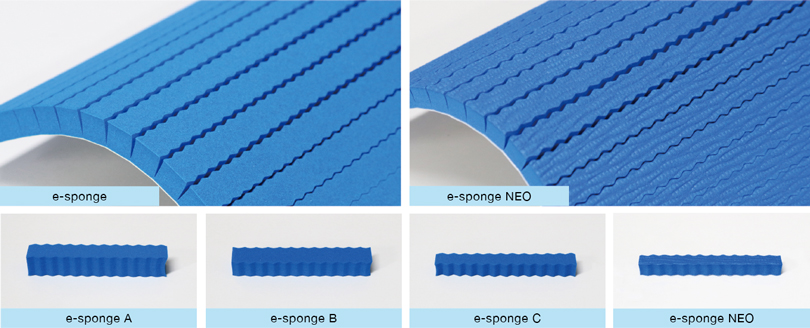

The NEO type features a textured surface that improves grip.
Ideal for ultra-high speed die-cutting.
Features
- eSponge is environmental friendly.
- This “closed-cell cellular plastic” is with excellent abrasion resistance and durable with long life.
- Self-adhesive ejection.
Specification
| Name | Size(Height x width x length) | Hardness | per sheet | Plywood |
|---|---|---|---|---|
| eSponge A L60 | 10ｘ10ｘ60 | 43° | 70pc | 16mm |
| eSponge A L30 | 10ｘ10ｘ30 | 43° | 140pc | 16mm |
| eSponge A L300 | 10ｘ10ｘ300 | 43° | 14pc | 16mm |
| eSponge B L60 | 8ｘ10ｘ60 | 43° | 70pc | 18mm |
| eSponge C L60 | 8ｘ7ｘ60 | 43° | 100pc | 18mm |
| eSponge C L30 | 8ｘ7ｘ30 | 43° | 200pc | 18mm |
| eSponge C L300 | 8ｘ7ｘ300 | 43° | 20pc | 18mm |
| eSponge 12 L60 | 12ｘ10ｘ60 | 43° | 70pc | 15mm or 16mm |
| eSponge NEO L60 | 7ｘ7ｘ60 | 51° | 100pc | 18mm |
| eSponge NEO L30 | 7ｘ7ｘ30 | 51° | 200pc | 18mm |
| eSponge NEO L300 | 7ｘ7ｘ300 | 51° | 20pc | 18mm |
| eSponge NEO 6mm wide | 7ｘ6ｘ60 | 51° | 115pc | 18mm |
